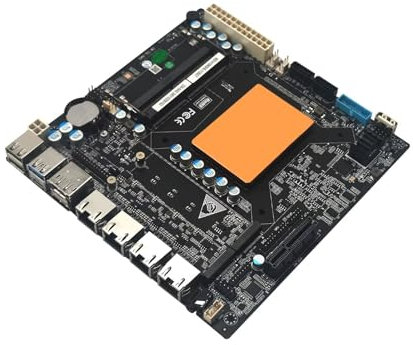

PeeliCeeli 6 Bay NAS Motherboard Core i5 1135G7, Mini ITX 17x17 cm MainBoard, 6 x SATA3.0, 4 x i226-V 2.5GbE LAN, 2 x M.2 NVMe (PCle3.0x4), 2 x DDR4, PCIE×4, 32GB RAM 1TB SSD

Produktbeschreibung

• Processor & Cooler 6 Bay NAS Motherboard with 11th Gen Core i5 1135G7 Processor (4 Cores 8 Threads, 8M Smart Cache, up to 4.20 GHz), TDP 12-28W, equipped with Iris Xe Graphics (80 EU). ATX-24Pin + 4Pin Power Supply, standard 17x17 Mini-ITX board type is compatible with 115X hole series cooler, 4pin power supply
• Network Card & Memory Mini ITX NAS motherboard with 4 x i226-V 2.5GbE RJ45 UDE-LAN. 1 x PCI-Ex4 slot (PCIE3.0x4) can be inserted x8 x16 network card. 2 x DDR4 SODIMM compatible with 2400 2666 3200MHz, up to 64GB RAM
• Extended Storage NAS DIY motherboard with 2 x M.2 NVMe (PCle3.0x4) slots, default 2280 size another is also compatible with 22110 size. Onboard JMB585 chip max support 6 x SATA3.0 6Gbps sockets (2 x SATA3.0 slots + 1x SFF-8643 support 1 drag 4 out 4 SATA3.0), SFF-8643 connecting cable not included
• Extensive interface PeeliCeeli 17x17 Mini ITX NAS motherboard with, 3 x USB2.0, 1 x USB3.0, 1 x HD2.0 + 1 x DP1.4 + 1 x Type-C triple display output supports 4K@60Hz resolution, 1 x Realtek-ACL897 2-in-1 3.5mm audio Jack, 1 x built-in set of USB3.0 pin header support lead to the chassis panel
• System & Application NAS low power motherboard support Wake on LAN, GPIO and so on. Support Linux, Win OS and Router System, etc. Suitable for personal data storage, storing surveillance images, enterprise data storage and management Data etc
