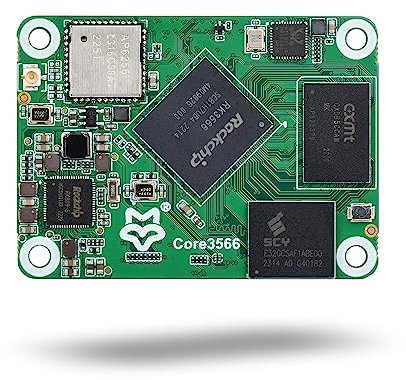

LUCKFOX Core3566102032 Module, Features Rockchip RK3566 Quad Core Processor, with 2GB LPDDR4 SDRAM Memory, 32GB eMMC, Dual Band(2.4GHz/5.0GHz) WiFi, BT5.0, Compatible with Raspberry Pi CM4 Baseboard

Produktbeschreibung

• A highly integrated compact board with Rockchip RK3566 quad-core 64 bit Coretex-A55 processor, with a main frequency of up to 1.8GHz. Adopting advanced 22nm technology, low power consumption, and high performance
• Integrates dual core architecture ARM G52 GPU, high-performance VPU, and high-efficiency NPU. GPU supports OpenGL ES3.2 2.0 1.1 Vulkan1.1. VPU can achieve 4K 60fps H.265 H.264 VP9 video decoding and 1080P 100fps H.265 H.264 video encoding. NPU has a computing power of up to 0.8 TOPS and supports one click switching of mainstream architecture models such as Caffe TensorFlow
• Compatible with CM4 baseboard such as CM4-IO-BASE-B, Compute Module 4 IO Board, Compute Module 4 PoE Board, CM4-DISP-BASE-5A, CM4-to-Pi4-Adapter, CM4-IO-WIRELESS-BASE, CM4-POE-UPS-BASE, CM4-DUAL-ETH-BASE(Please note that some functions of the interface USB2.0, HDMI, and CSI are not compatible. Please consult our 24-hour customer service for more details)
• Features powerful computing and graphics processing capabilities. Suitable for embedded applications with support for 2GB LPDDR4 SDRAM memory, 32GB eMMC Flash, dual Band(2.4GHz 5.0GHz) IEEE 802.11a b g n ac WiFi, BT5.0 BLE(Please note that the WiFi module does not have onboard antennas, additional antenna is required.)
